TIMEX Command Cartridges

TS1000/1500 Cartridges:

Timex made the TS1510 cartridge player add the command cartridges to the TS1000 and TS1500 computers. These cartridges are incompatible with the TS2068 cartridges.

The TS1000/1500/ZX81 uses the signal /ROMCS to disable the internal ROM. The cartridge works by pulling this low and placing its own ROM in this range. The Spectrum 48K and IF2 also work in this way.

TS2068 Cartridges:

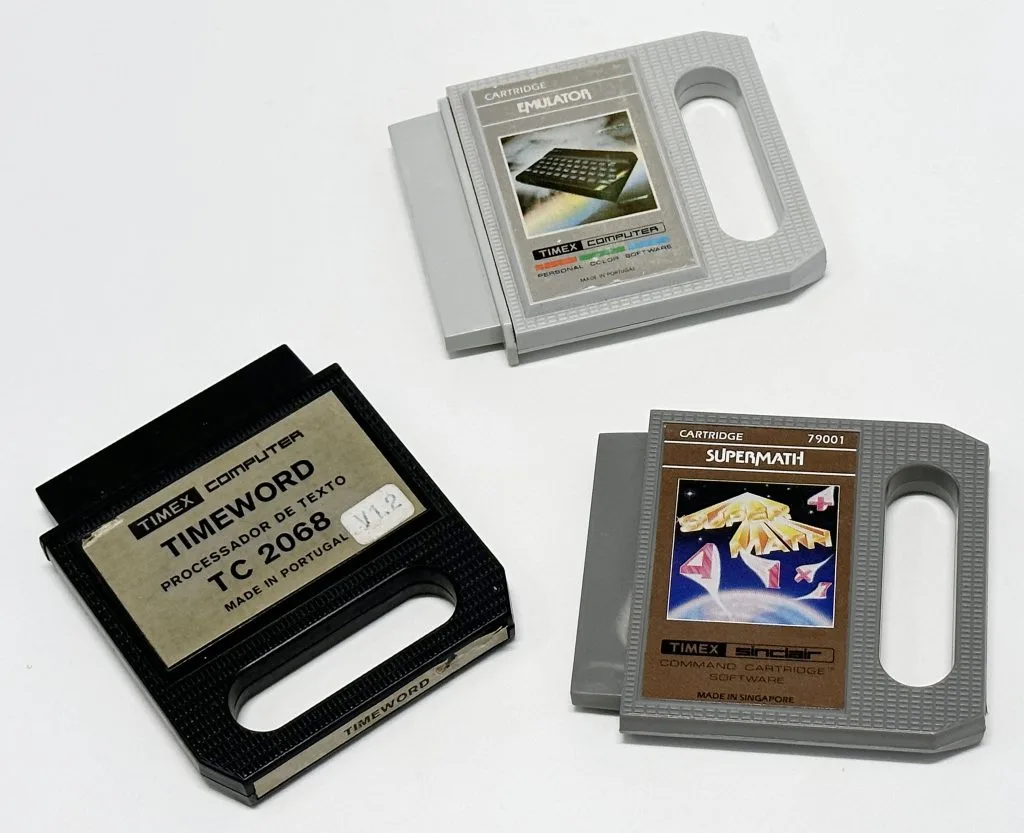

TCC or Timex Command Cartridges are a solid-state technological achievement. Like a video game cartridge, they easily plug into TS2068 in a Dock port to instantly meet different needs. The tiny Timex Command Cartridges add up to 56K of additional ROM memory to the computer. They can contain any kind of program (games, business programs, word processors,…)

  1. Turn off TS2068
  2. Open the Dock port and insert the cartridge with the label facing up
  3. Close Dock port
  4. Turn on TS2068

Now the software in the cartridge will start to work.
Caution: Never remove or insert a cartridge with the computer on!

Types of TS2068 Cartridges:

Actually exists 3 types of cartridges: LROS, AROS, and ROMs.

  • LROS takes control of the computer, the internal ROMs are not used;
  • AROS uses a BASIC interpreter;
  • ROM can be simply a ROM chip. In TS2068 to a ROM work, you must type OUT 244,3 to “page” the DOCK port. A ROM can have the bytes that the system searches to make autostart.

ROM extensions mapped into the DOCK bank are mostly implemented as LROS (Language ROM Oriented Software) and AROS (Application ROM Oriented Software). LROS programs are mapped at address 0 in the DOCK bank and they must be written in machine code. AROS programs are mapped at address 32768 in the DOCK bank and may be either in machine code or in BASIC (The Timex BASIC interpreter allows the running of BASIC programs from the DOCK bank). LROS programs always have autorun and they will be started after the initialization of the Timex computer is finished (an example of such software is Zebra OS_64). AROS programs may or may not be autorun programs. Both types of programs have a short header at the beginning which contains the necessary information (start address etc.) for their execution.

DCK FILES – Used by the Warajevo emulator

DCK files keep information about the memory content of various Timex memory expansions, and information about which chunks of extra memory are RAM chunks and which chunks are ROM chunks. Such files have a relatively simple format. At the beginning of a DCK file, a nine-byte header is located. The first byte is the bank ID with the following meaning:

  • 0: DOCK bank (the most frequent variant)
  • 1-253: Reserved for expansions that allow more than three 64 Kb banks
  • 254: EXROM bank (using this ID you may insert RAM or ROM chunks into EXROM bank, such hardware units exist on real Timex Sinclair)
  • 255: HOME bank (mainly useless, HOME content is typically stored in a Z80 file); however, using this bank ID you may replace the content of Timex HOME ROM, or turn Timex HOME ROM into RAM

This numbering of banks is according to the convention used in various routines from Timex ROM. After the first byte, the following eight bytes correspond to eight 8K chunks in the bank. The organization of each byte is as follows:

  • bit D0: 0 = read-only chunk, 1 = read/write chunk
  • bit D1: 0 = memory image for the corresponding chunk is not present in DCK file, 1 = memory image is present in DCK file
  • bits D2-D7: reserved (all zeros)

To be more clear, these bytes will have the following values:

  • 0, for non-existent chunks (reading from such chunks must return default values for the given bank; for example, #FF in DOCK bank, and ghost images of 8K Timex EXROM in EXROM bank)
  • 1, for RAM chunks, where initial RAM content is not given (in the emulator such chunks will be initially filled with zeros)
  • 2, for ROM chunks
  • 3, for RAM chunks where initial RAM content is given (this is needed to allow saving the content of expanded RAM; also this is useful for emulating non-volatile battery-protected RAM expansions) After the header, a pure image of each presented chunk is stored in DCK file. Some examples will help in the understanding of such an organization. 16 Kb long LROS program needs header 0,2,2,0,0,0,0,0,0 in front of the pure binary image of this program. 24 Kb long AROS program needs header 255,0,0,0,0,2,2,2,0 in front of the binary image of it to become a valid DCK file. 64 Kb DOCK RAM disc cartridge (64K of empty RAM) may be described as only a 9-byte long DCK file with content 0,1,1,1,1,1,1,1,1. 32 Kb EXROM RAM disc cartridge mapped at address 32768 may be described also using a 9-byte long DCK file with content 254,0,0,0,0,1,1,1,1. If you put a 9-byte header 255,2,2,0,0,0,0,0,0 in front of the binary image of standard ZX Spectrum ROM, you will get a DCK file which will replace Timex HOME ROM with ordinary Spectrum ROM (e.g. you will achieve Timex Computer 2048). At the last, if you put a header 255,3,3,0,0,0,0,0,0 in front of the binary image of Timex HOME ROM, you will allow writing in the HOME ROM!

That’s all if only one bank is stored in the DCK file. Else, after the memory image, a new 9-byte header for the next bank follows, and so on.

The Spectrum Emulator Cartridge:

This cartridge made by Timex of Portugal, contains a ROM image of TC2048. I think that this isn’t a ROM cartridge, but an LROS cartridge, because it is simply plugged into TC2068 and it starts automatically. Many American Timex Sinclair 2068 users made a cartridge with a ROM chip of a ZX Spectrum and because of this, they have to type the OUT 244,3 command.

Cartridge Software Overview

The TS2068 supports two basic types of Cartridge or ROM-Oriented Software designated as LROS (Language ROM-Oriented Software) and AROS (Application ROM-Oriented Software) which plug into the cartridge connector. They are identified via overhead bytes at Location 0 for an LROS or 32768 (8000H) for an AROS. The fundamental difference is that an LROS contains Z80 machine code in memory chunk 0 and is in total control of the TS2068 hardware including the RESTART implementation and Interruption Mode setting and handling, while an AROS is dependent on the System ROM or an LROS for these functions if needed. An AROS written in BASIC, which may also include machine code accessed via the USR function, is supported by the System ROM BASIC Interpreter and is mapped beginning in-memory chunk 4. An AROS may also be written entirely in Z80 machine code. An AROS written in any other high-level language would require an LROS supporting that language and would have to be integrated with the LROS in a single cartridge.


BASIC Application Cartridges are supported by special codes in the Home ROM. A program line is copied from the cartridge to a buffer in the Home RAM (ARSBUF) and is then executed from there by the BASIC Interpreter. When a READ command is executed, the line containing the appropriate DATA statement is also copied from the cartridge to the RAM. The cartridge memory is enabled only fur search and copy operations for both program lines and DATA statements, and when executing a USR function, otherwise the entire Home Bank is enabled while executing in the BASIC Interpreter. There is no support for User-Defined Functions which insert the expanded definition parameters directly into the program and then require a search of the program area to find these parameters whenever a function is invoked.

Cartridge Software/Hardware


An LROS is identified by the following overhead bytes:

0000Not Used
0001Cartridge Type -> O1=LROS
0002/0003Starting Address (LSB/MSB)
Address to be jumped to after Operating System initialization is complete. The order of bytes is for a JP instruction.

Memory Chunk Specification.
Bits 0-7 represent Chunks 0-7 respectively in the Dock Bank in the low active format:

1 if in use
0 if not in use

NOTE: When writing to the Horizontal Select Register (Port F4H), the Chunk Specification is High Active

The Memory Chunk Specification is used to enable the specified chunks in the Dock Bank before jumping to the address specified in Locations 2 and 3. Control is transferred from the Initialization code in the Extension ROM via the GOT0 BANK routine in Home Bank RAM Chunk 3, therefore Bit 3 of the Memory Chunk Specification must be set to 1 for the transfer to be accomplished as designed (Chunk 3 also contains the Machine Stack).

CAUTION: If Chunk 3 is marked for use in the Dock Bank, then when the Memory Chunk Spec. is written to Port F4H by the Bank Enable code, execution will continue from that point in Chunk 3 in the Dock Bank with the Stack Pointer addressing ROM.

An LROS is Z80 machine code and is in complete control of the TS 2068 hardware after a transfer to the starting address has been made. It can directly implement an application, or it can support multiple applications by implementing a language other than basic. An AROS dependent on such an LROS would have to be part of the same cartridge since there is only one cartridge connector.

Interruption Mode 1 has been set by the TS 2068 and interruptions are enabled before passing control to the LROS starting address, therefore the LROS must contain appropriate code at location 56 (38H) to cover the case where the interruption occurs after Chunk 0 in the Dock Bank has been enabled, but before any action by the software cartridge to disable the interruption has been taken. Once control is transferred, the LROS may then disable the standard TS 2068 interruption by setting bit 6 of Port FFH, mask the interruption by executing a DI instruction, or set a different Interruption Mode. It may change the location of the Machine Stack. It may also change the memory selection by writing to Port 0F4H with each bit set to 1 for the corresponding chunk to be enabled in the Dock Bank (high active format) or 0 to be enabled in the Home Bank. Thus, an LROS may contain code in Chunk 3, but it should be enabled after the OS RAM code has finished execution. Now that your LROS is in the driver’s seat, you are on your own! Some important points to remember when mapping your Dock Bank memory and doing bank switching are:

  1. The Display RAM is in Home Bank Chunk 2 for the primary display file and Chunk 3 for the second display file. This memory is accessed independently by the video hardware. The software only needs to enable it when reading or writing it.
  2. The Dock Bank and Extension ROM Bank are mutually exclusive since they share the Horizontal Select Register in Port F4H. You will need a routine in the Home Bank RAM to do any switching between the two. You must also be careful to have the appropriate Home Bank Chunks enabled which are referenced by the Extension ROM code, e.g. the System Variables in Chunk 2 or possibly the bank switching code in Chunk 3.
  3. Some interesting switching routines can be constructed by having parallel code in shadowing chunks of memory to take advantage of the”instant” switch in execution from one hank to another when the memory selection is made. E.g. a routine in the Dock Bank ROM in Chunk 6 could push a Home Bank address on the stack, write to Port F4H enabling Chunk 6 and any other desired chunks in the Home Bank (by deselecting them in the Dock), and have code at the next sequential instruction address in Home Bank RAM Chunk 6 to continue the path. A Return instruction, for example, would pass control to the address on the stack. Code to switch memory back to the Dock Bank could be mapped similarly.
  4. If you plan to use any of the System software routines, unless you know otherwise it is probably necessary to maintain the contents of Home Bank Chunks 2 and 3 intact (and Chunk 7 if the OS RAM routines have been relocated). The system routines rely heavily on the System Variables and assume that any pointers in them are pointing to the Home Bank. See Section for details on using the RAM Interruption Handler and Section 6.0 for known corrections when using System S/W.
  5. If you design an LROS implementing a higher-level language and want to support an AROS application, you must design your initialization code to detect the presence of such an AROS. The TS 2068 will not look for the presence of an AROS if an LROS is present, therefore there will be no entry for the AROS in the System Configuration Table. Note that since there is only one cartridge connector, such an AROS would also have to be integrated with the supporting LROS in a single cartridge or cartridge board.


An AROS is identified by the following overhead bytes:


Language Type
1 = BASIC [and machine code]
2 = Machine code only
(Any other value will result in Error S, Missing LROS)
Cartridge Type
Starting Address(LSB/MSB)
BASIC AROS= Addrs. of First Program Line
Machine Code AROS = Addrs. of First Z80 Instruction

Memory Chunk Specification
Bits 0-7 represent Chunks 0-7 respectively in the Dock Bank in the low active format as follows:
1 if in use
0 if not in use

NOTE: Bits 0-3 must be set to 1 for proper execution.

Autostart Specification: 0= No Autostart
                                         1 = Autostart
Several bytes of RAM are to be Reserved for Machine Code Variables (LSB/MSB – 0100H=1 byte Reserved; 0002H=512 bytes Reserved.


A BASIC AROS is supported by a special code in the System ROM (Section The portion of the cartridge containing BASIC program lines is restricted to the upper half of the memory space beginning at location 32776 (8008H) in the Dock Bank. Support for User-Defined Functions, which requires searching for the definition parameters within the program, is not implemented. Also, because the support code interfaces directly to the bank switching code in. Home RAM Chunk 3 (does not allow for it to be relocated to Chunk 7), a BASIC AROS cannot utilize the advanced video modes and also execute BASIC program statements. If the cartridge contained machine code supporting advanced video modes, the TS 2068 would have to be returned to “Normal ” video mode with the RAM mapped accordingly (see Figure 1.1-3) if control were to be returned to the BASIC Interpreter USR code.

Since the execution of the cartridge BASIC program is done by copying program lines to a buffer in the Home Bank RAM (ARSBUF), the most efficient cartridge execution is obtained by making program lines as large as possible, making use of the multi-statement feature of the TS 2068. The reverse is true concerning the execution of READ commands. An entire DATA statement is copied to the Home Rank RAM, but only the current item is accessed. It therefore will be more efficient to not make DATA statements excessively long. The BASIC program lines appear in the cartridge in the same format used in the RAM, i.e. Line Number (2 bytes), Length (2 bytes), Command Token, etc. terminated by an Enter (ODH). Numerical constants appearing in a program line are followed by the CHR$ (OEH) byte and 5-byte floating point format described in the User Manual (see Appendix C of the TS 2068 User Manual). The Variables area is built in the RAM (address in VARS) exactly as though the program were in the RAM. All variables, including arrays, are built at the time of program execution – there is no provision for copying or accessing ore-defined: variables from the cartridge, however, see Section 5.3.2. The last program line must be followed by a terminator byte having the Most Significant Bit set (e.g. 8OH), otherwise, the Interpreter cannot detect the end of the program.

A BASIC AROS may contain machine code accessed via the USR function. If the machine code address is within the memory designated by the AROS Memory Select Specification as ‘in use’, the Dock Bank will be enabled, otherwise, the machine code address is assumed to be in the Home Bank. (See Section 6.0 for details on known problems in this area of the code.) Once control is transferred to the machine code in the AROS, the ball is now in your court. You could have additional machine code residing in the lower half of the Dock Bank memory space which you can now switch in. You only have to know what you’re about. If and when you are ready to go back to executing your BASIC program, you must enable Chunks O-3 in the Home Bank and have the stack and other Home Bank RAM in the proper state for return to the USR function code in the BASIC Interpreter, i.e. what it was when the USR function passed control to you. The Autostart feature begins execution out of the BASIC AROS immediately after system initialization. If the Autostart parameter is zero, control will go to the BASIC Interpreter as if there were no cartridge installed, although internal flags have been set noting that a BASIC AROS is present. The cartridge will be started when you execute a RUN or GOT0 Line Number command.

The final parameter in the overhead bytes allows you to reserve RAM beginning in Chunk 3 at Location 26688 (6840H) for machine code and/or machine code variables. The designated number of bytes is reserved by the AROS support code before beginning program execution. The AROS buffer (ARSBUF) begins immediately following this reserved area. Note that this area is part of the RAM that gets relocated if the second display file is opened. Therefore access to your machine code and/or variables should be conditional on the video mode rather than direct if you are going to be using the advanced video modes, This reserved area begins at 31488 (7B00H) when the second display file is open. Remember– use of the second display file and execution of the BASIC program from the cartridge are mutually exclusive.

The standard technique of reserving space for machine code by modifying RAMTOP could also be used to place machine code/variables at the top of the Home Bank RAM. If you place the code above (RAMTOP) which is to be accessed via the BASIC USR function, the affected memory chunk(s) cannot be marked as “in use” in the cartridge in the AROS Memory Selection Specification.

Machine Code AROS

A machine code AROS is similar to an LROS with the exception that it is dependent on the System ROM for interruption handling if the interruption is enabled. This implies that Chunks 0-3 are enabled in the Home Bank.

The Autostart parameter should be set to 1 since if it is zero, control will be passed to the BASIC Interpreter as if the cartridge were not present. There is no BASIC command to directly start the execution of a Machine Code AROS.

Because of a “bug” in the Initialization code handling a Machine Code AROS, the parameter specifying the number of bytes to be reserved for machine code variables must be adjusted by adding 21 (15H) to the actual number of bytes needed. This preserves the 21-byte CHANS area starting at 26688 (6840H). The reserved area then starts at 26709 (6855H) (or 31488 (7B15H) when the second display file is open). Access to the variables should be conditional based on the video mode rather than direct if you plan to use the advanced video modes. If you do not plan to utilize any of the system software, you can disregard the above and “do your own thing” with the RAM.

BASIC AROS Variables

To use pre-defined arrays and/or other BASIC variables, store them in the cartridge (possibly in the lower half of the addressable space which is not usable for the BASIC program) and branch to a machine code routine via the USR function at the beginning of your BASIC AROS program. Use this routine to do the necessary memory selection and copy your data from the cartridge to the RAM (address in VARS). Adjust the System Variables E LINE, WORKSP, STKBOT, and STKEND to all point to the first free memory following your BASIC variables. Of course, all BASIC variables must conform to the format expected by the BASIC Interpreter. In addition to BASIC structures, you can also store screen images and machine code/variables in the cartridge for transfer to the RAM under your control. Consider using the XFER BYTES service in the OS RAM.

Known “BUGS” and Corrections

This section describes the known problems in the TS 2068 System Software and gives corrections or workarounds where these have been defined.

1 LROS and Autostart Machine Code AROS

1.1 If you will be using the System ROM Keyboard routines and accessing the input character code from system variable LAST K (5C08H), you must initialize the TS 2068 to “L” mode by setting the system variable MODE at 23617(5C41H) to zero and setting Bit 3 of FLAGS (23611 -5C3BH) to 1. (The TS 2068 is in “K” mode when control is passed from System Initialization to the Cartridge; Keyword Token codes will be placed in LAST K instead of character codes.

1.2 If you will be using the System ROM Calculator routines (RESTART 40 (28H) ) or any ROM routines that invoke them, you must initialize the System Variable YEM by doing the following:

LD (5C68H), HL Initialize MEM

1.3 Chunk 3 must not be designated as “in use” by the Cartridge Memory Selection Specification byte. This will cause the deselection of the bank switching code before the completion of the transfer of control to the cartridge starting address. Once control has been transferred, the cartridge code may then enable Chunk 3 in the Dock Bank if desired. (See Section 5.1.)

1.4 No entry is made in the System Configuration Table for an RROS if an LROS is present. This means that an LROS designed to support either RAM-based or cartridge-based applications must include code for the detection of an AROS.

2 Machine Code AROS

When setting the AROS Overhead parameter requesting RAM space for machine code variables, 21 + n bytes (15H + n) must be requested where n is the number of bytes needed. The machine language variables area then starts at 6 85 5H immediately following the 21-byte CHANS area.

NOTE: This does not apply to an AROS that contains both BASIC and machine code.


3.1 USR Function – When testing the USR address against the Cartridge Memory Selection byte to determine if the address is in the Home Bank or the Dock Bank, the wrong nibble is tested in the register thus a valid cartridge address could be erroneously processed as a Home Bank address. Since the ROM code cannot be corrected, the machine code in the cartridge would have to be moved to an address that does not cause a problem.

3.2 FOR/NEXT – If the limit of the FOR statement has already been passed on its initial execution, (e.g. FOR A=1 TO 10 and A has been set to 12), control is passed to the statement following the corresponding NEXT. In the AROS support code, the address of this statement is lost giving unpredictable results. Since the ROM code cannot be corrected, care must be taken not to use this technique in an AROS Cartridge. Normal usage of FOR/NEXT loops is not affected.

3.3 Advanced Video Modes- Because the BASIC AROS supports code interfaces directly to the Bank Switching code in Chunk 3 (does not access based on its relocatability), the second display file cannot be opened when executing a BASIC program from an AROS.
